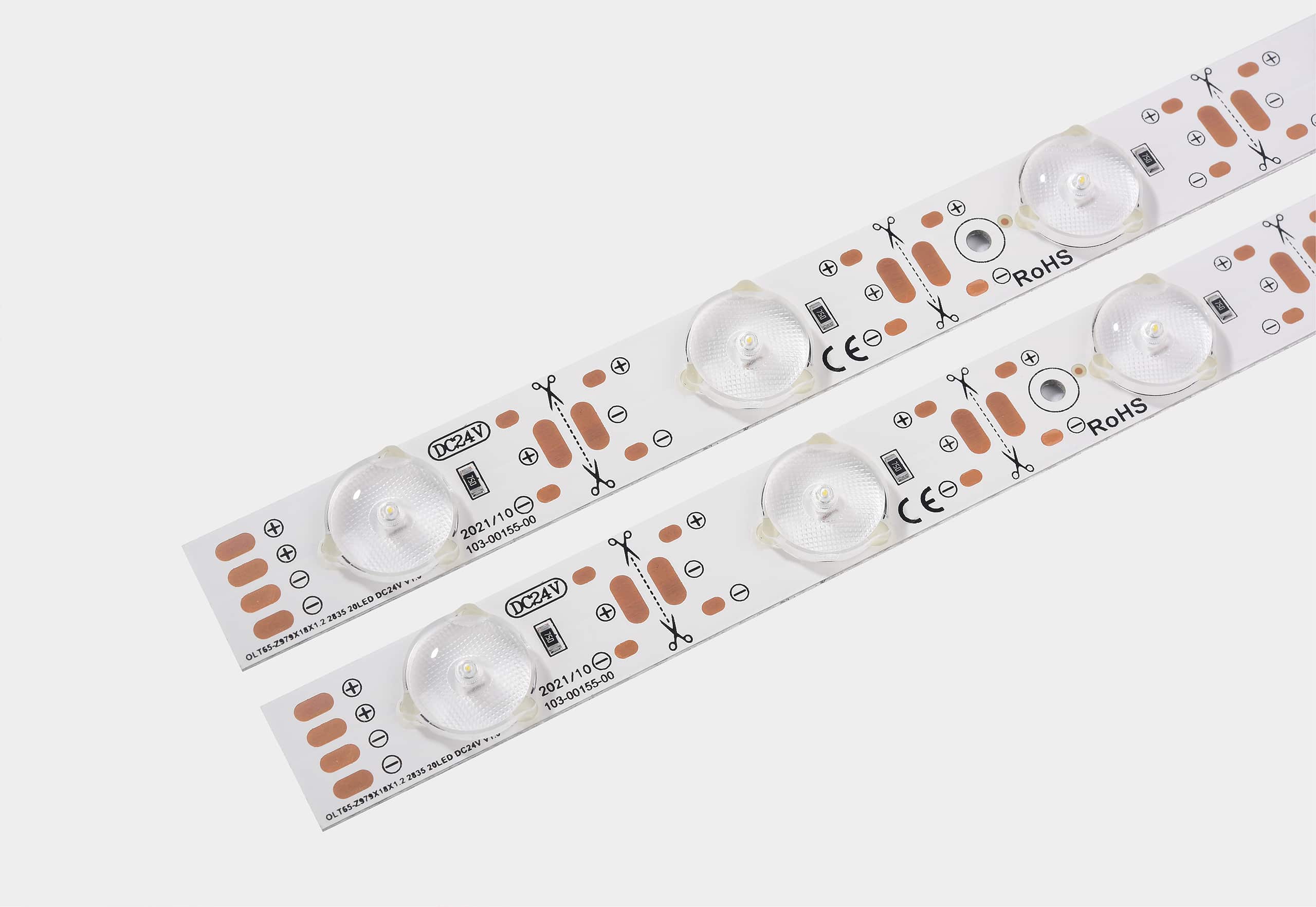

Backlit LED Bars (T099-X14)
Backlit LED light bars are designed to provide uniform illumination for single-sided lightboxes with depth from 50 – 100mm, the bars can be easily cut at intervals of 1LED to fit specific requirements, these led light bars are suitable for indoor and outdoor backlighting applications.
– Adopt international leading TV back light technology
– High bright 2835 LED as light source, the secondary light distribution
-Optical lens of 170°,wide angles ,uniform illumination without yellow spot
-RA80,excellent color reducibility
-Singles LED cuttable，applicable for all different sizes of light box
Parametersnge
| ltems | parameters |
| Part NO. | T099-X14 |
| LED | 2835 |
| Color | Pure white/Cold white |
| CCT(K) | 7000-8000/9000-12000k |
| Voltage ( V ) | 12 |
| Power ( W ) | 14 |
| Lumen Output( LM ) | 1540 |
| Light efficiency (LM/W) | 120 |
| Optical lens( °) | 170 |
| Standard group no.（PCS） | 20 |
| Driving mode | Constant voltage |
| Weight(g/pcs) | 85 |
| Warranty | 3years |
| Work environment（℃） | -25-+60 |
| Storage temperature（℃） | -25-+80 |
| IP Rank | IP33 |
Product size
T099-X14
Light distribution curve
Connection diagram
Application cases
